Apple Cabin / 20 ft

Apple Cabin. Panoramic white.

One clearly identified facade style. Then explore the layouts and interior references from the studio family.

  • Fixed cabin in the studio family.
  • Reference panoramic white facade.
  • Match the layout and interior to your chosen style.
Family plansLayout to confirm
My project
Catalogue reference, pages 3, 4, 18

Inside the studio family.

These photographs are studio family references. Confirm their match to the panoramic white style and selected plan.

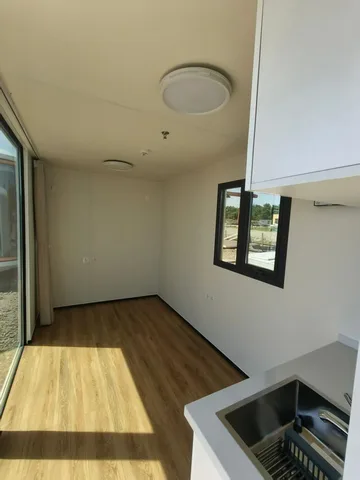

Apple Cabin family interior

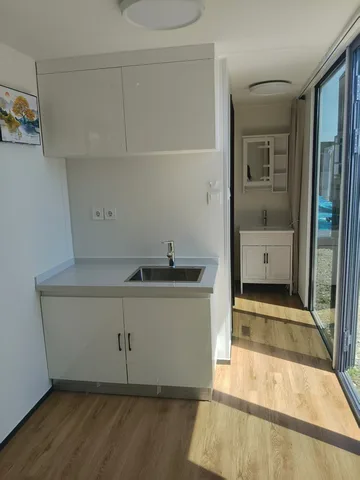

Apple Cabin family kitchen

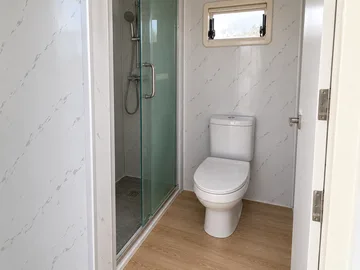

Apple Cabin family bathroom

Our standard features.

Everyday details, shown in pictures. The model parameters remain the reference for materials and the supplied version.

Panoramic insulating glazing

Illustration created for this feature

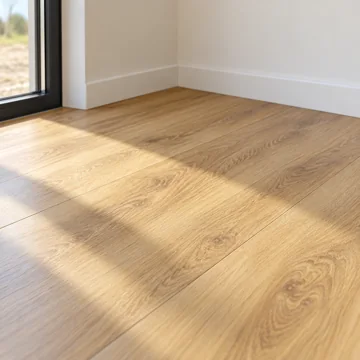

10 mm composite floor

Illustration created for this feature

Worktop

Base cabinets

Sink and mixer

Glazed sliding door

Electrical panel

Cornice and skirting

Bathroom vanity

Electrical sockets

Waste connections

Bathroom walls

Standard toilet

Detail images illustrate the functions. Colours, furniture and accessories follow the model dossier and your requests.

The area, clearly.

The house body and terrace are shown separately. Areas are calculated from visible dimensions; exterior footprint includes the walls.

Net interior floor areaTo confirm

The plan does not establish a complete verified net living area.

Enclosed body: exterior reference12.47 m²

5.800 × 2.150 m

Principal terrace in the dossierTo dimension

Newly supplied family plan. The other 2.200 m reference remains distinct. Terrace/canopy dimensions are absent. Confirm the facade-style match.

The model in detail.

Standard Apple Cabin sheet materials are retained. Family plans and interiors need to be matched to the chosen facade style.

Dimensions and plans

Length / height
5,800 / 2,450 mm
Plan A
2,200 mm width; bed to the left, shower and toilet to the right.
Plan B
5,800 × 2,150 mm; bathroom to the left, bed to the right.

Structure and materials

Main steel
Galvanised: 100 × 100 × 3 mm and 50 × 100 × 2 mm.
Secondary steel
40 × 60 × 1.5 mm / 30 × 50 × 1.5 mm; declared horizontal spacing at least 400 mm; corner reinforcements.
Reinforcements / roof
Openings 40 × 80 × 2 mm; roof 50 × 100 × 2 mm; curved element 100 × 100 × 3 mm.
Walls
Sculpted metal exterior; bamboo-wood fibre interior.
Floor
18 mm high-density cement board + 10 mm composite flooring and skirting.
Insulation
50 mm mineral wool with aluminium facing.
Openings
Thermally broken aluminium; insulating glazing, opening type by variant.
Electrical
Ceiling LEDs, breaker, 6 mm² supply, 16 A sockets to adapt to destination.

Your space, in plan.

Studio family plans. Widths and layouts are distinct; confirm the relationship to the chosen style.

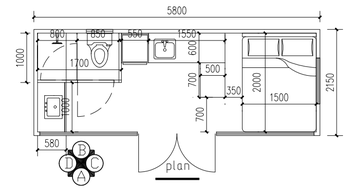

Technical 2D plan

Apple Cabin family 2D plan: 5,800 × 2,150 mm

Include this reference in my brief
Reference 3D arrangement

Apple Cabin family 3D reference 1

Include this reference in my brief

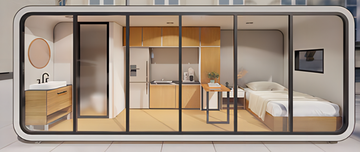

Reference 3D arrangement

Apple Cabin family 3D reference 2

Include this reference in my brief

Other Apple Cabin styles.

Each facade is a separate reference. Define the plan, interior and equipment for the chosen style.

A place for your purpose.

A place to live, host or work. These are project possibilities: define layout, equipment and use requirements for the chosen cabin.

Living spaceGuest accommodationHotel unitExtra officeWorkspacePrivate gymSports and wellness

A configuration
to validate together.

The new family plan is 2,150 mm wide. Earlier 2,200 and 3,000 mm references remain distinct; match the plan to the chosen style. The sheet’s inconsistent 1,200 mm dimension is not adopted.

R 3.4, A1 fire reaction, seismic level 8 and wind level 12 are source claims; methods and supporting documents require clarification.

Presentation views and dossier photographs remain references. Furniture, equipment and construction details follow the model dossier and your project.

Complete your project.

Terrace, automatic shutters, energy, water and air conditioning: keep your choices in one brief.

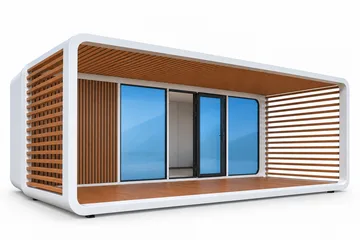

Apple Cabin terrace

Select a single terrace / canopy presentation for this cabin.

Apple Cabin reference with side slats. Define kit dimensions for the chosen model.

Motorised shutters

Custom automatic shutters to add for your openings.

Motorised operation and remote control. Enter your dimensions to prepare the project.

Requested dimensions, in millimetres

Select the shutter, then add measurements to the brief. We’ll check each opening.

Custom width and height for glazed entrances. Define the opening and installation.

Requested dimensions, in millimetres

Select the shutter, then add measurements to the brief. We’ll check each opening.

Energy, water and comfort

Equipment to suit you.

Choose add-ons for this house. Each reference has its own images and specifications.

Your atmospheric water

The 500 L/day model, to add to your project.

Your indoor comfort

Select 9,000 BTU, 12,000 BTU, or both. Specify quantities in your brief.

Continue my project

A starting point, your possibilities

Your home follows
your project.

These models reflect the most common requests. We can work with you on materials, layouts, bathrooms, kitchens and room divisions.

Connected modules, extra space and an upper extension: describe your idea. We’ll define the plan and construction solution for your site and use.
