Plan-stated value, to reconcile with room areas.

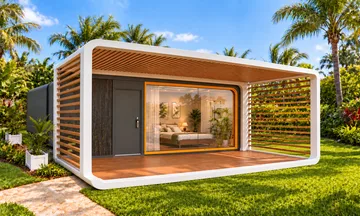

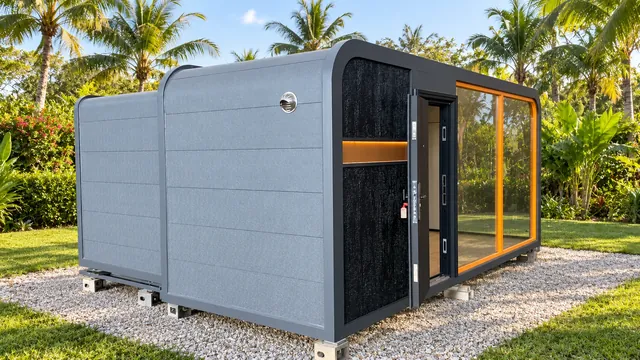

T6: retained reference exterior
Apple Cabin / Expandable T6
T6. Space unfolds.
A bedroom, living area and bathroom in an Apple Cabin with a rear expandable module.
- Rear expandable module.
- 6 mm click-fit SPC flooring according to the T6 sheet.
- Two units per 40 ft High Cube container, according to the source.
Plan supplied
Catalogue reference, pages 5, 6Explore the interior.

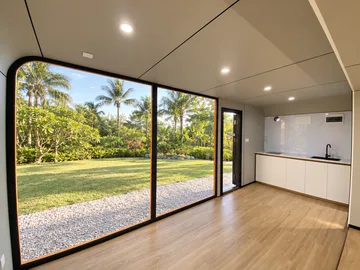

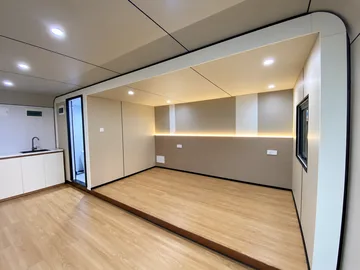

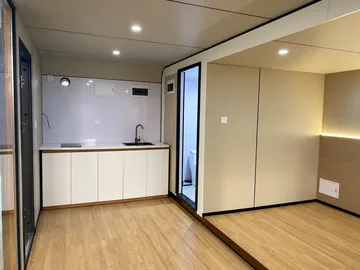

Photographs and views supplied in the model’s dossier. Furniture and equipment follow the chosen configuration.
Our standard features.
Everyday details, shown in pictures. The model parameters remain the reference for materials and the supplied version.

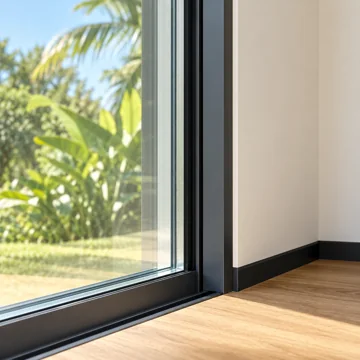

T6 Low-E glazing
Illustration created for this feature6 mm interior SPC

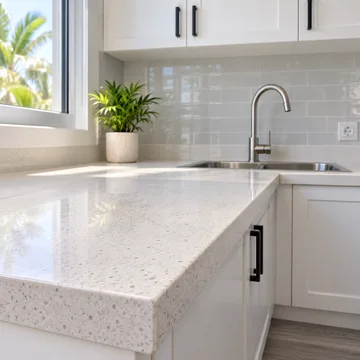

Worktop

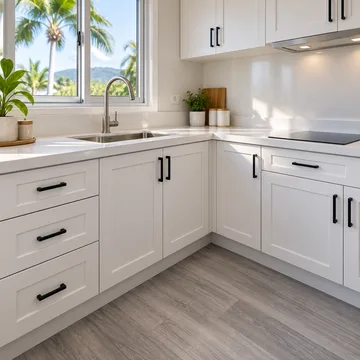

Base cabinets

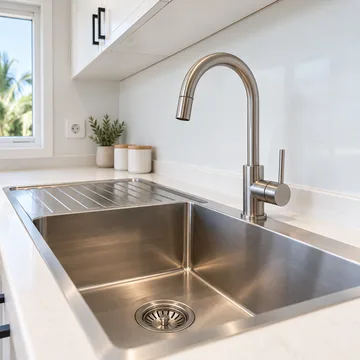

Sink and mixer

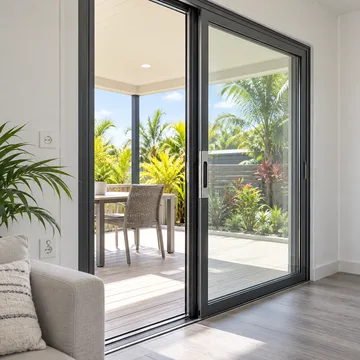

Glazed sliding door

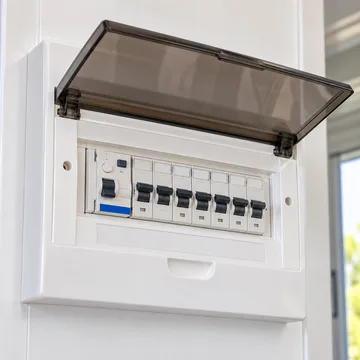

Electrical panel

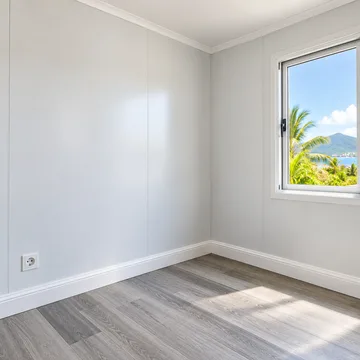

Cornice and skirting
Bathroom vanity

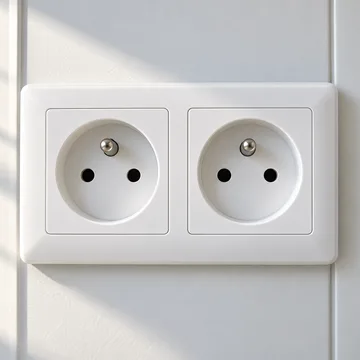

Electrical sockets

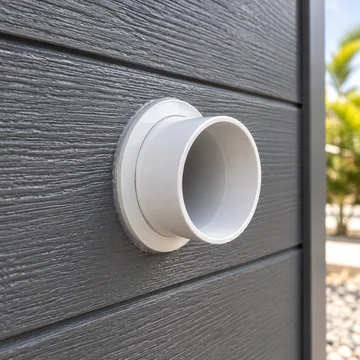

Waste connections

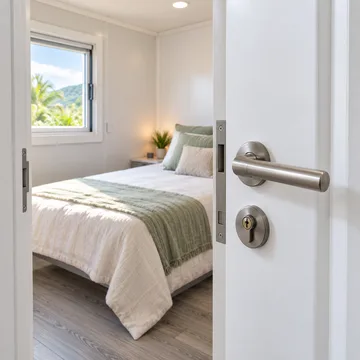

Bedroom door
Bathroom walls

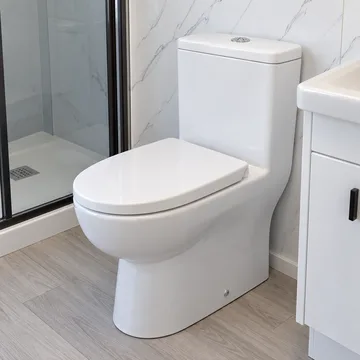

Standard toilet
Separate shower
Detail images illustrate the functions. Colours, furniture and accessories follow the model dossier and your requests.
The area, clearly.
The house body and terrace are shown separately. Areas are calculated from visible dimensions; exterior footprint includes the walls.
The plan states 21.44 m²; room labels sum to 20.85 m² (6.92 + 10.99 + 1.27 + 1.67), a 0.59 m² difference. The 5.850 × 4.170 m outer rectangle gives 24.3945 m² but includes empty corners. New canopy dimensions are absent.
The model in detail.
Dimensions and transport
- Expanded
- 5,850 × 4,170 × 2,700 mm
- Folded
- 5,850 × 2,270 × 2,550 mm
- Declared footprint / weight
- Approximately 24 m² / approximately 5.2 t
- Interior plan area
- 21.44 m² stated
- Rooms, plan values
- Bedroom 6.92; living 10.99; shower 1.27; dry zone 1.67 m².
- Bathroom on the sheet
- 1,950 × 1,565 mm
- Source power rating
- 10 kW; supply to validate.
Envelope and finishes
- Frame / cladding
- Hot-dip galvanised steel, stone-effect PU-insulated metal cladding, powder coating and anti-rust treatment.
- Windows
- Tempered Low-E 5 + 9A + 5 mm.
- Facade / doors
- Tempered Low-E 6 + 12A + 6 mm.
- Insulation / OSB
- 50 mm XPS or PU; 9 mm B3 OSB, declared ENF class.
- Waterproofing / substrate
- 2 mm self-adhesive aluminium bituminous membrane; 18 mm fibre cement, class A, asbestos-free according to the sheet.
- Walls / ceiling / floor
- Carbon-crystal panels or bamboo-wood grid, 9 mm OSB and finish frame; 6 mm click-fit SPC.
Utilities and bathroom
- Entrance door
- Reinforced anti-rust steel; key, code and card.
- Water / electrical
- PPR water, PVC drainage; customisable European sockets and switches.
- Lighting
- LEDs; waterproof exterior silicone COB strip, 4,000 K; battery-operated standalone detector.

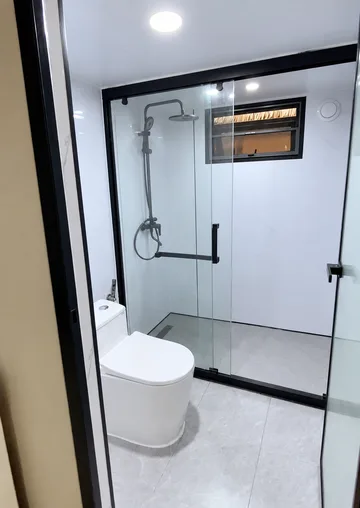

- Bathroom
- Carbon-crystal finish, glazed divider, toilet with spray, L-shaped vanity and standard mirror, shower and accessories; lighting / ventilation / heating.
Your space, in plan.
Each document keeps its own dimensions. Presentation plans, technical plans, 3D arrangements and elevations are identified separately.

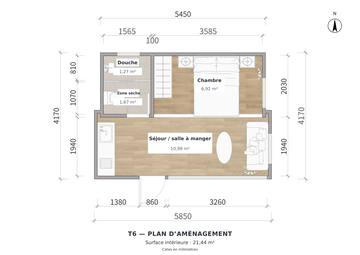

T6 interior plan
A place for your purpose.
A place to live, host or work. These are project possibilities: define layout, equipment and use requirements for the chosen cabin.
A configuration
to validate together.
Exterior cladding: 16 mm in Chinese and 6 mm in English, to confirm.
Detailed room areas do not sum to the stated 21.44 m². The 24 m² footprint remains a separate figure.
Ratings, moisture / termite resistance and hotel-system compatibility are source claims requiring documents. Staged furniture depends on configuration.
Presentation views and dossier photographs remain references. Furniture, equipment and construction details follow the model dossier and your project.
A starting point, your possibilities
Your home follows
your project.
These models reflect the most common requests. We can work with you on materials, layouts, bathrooms, kitchens and room divisions.
Connected modules, extra space and an upper extension: describe your idea. We’ll define the plan and construction solution for your site and use.
Discuss my idea
