The plan does not establish a complete verified net living area.

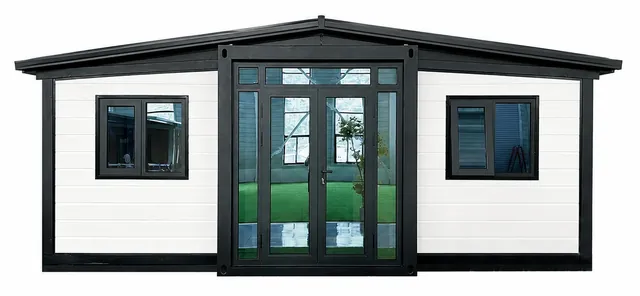

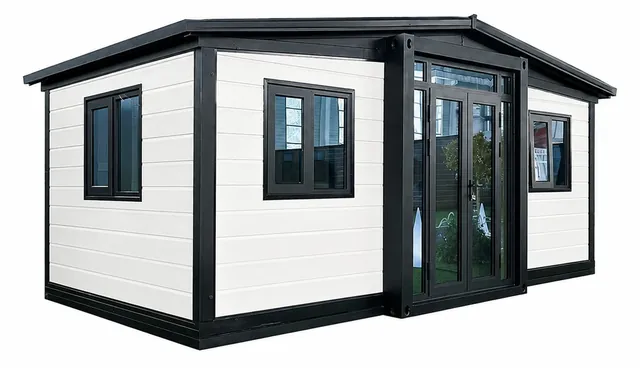

Complete front of the compact model
10 ft / Compact
10 ft. The compact model.
A living area, separate bedroom and central bathroom in the compact plan from the dossier.
- One separate bedroom.

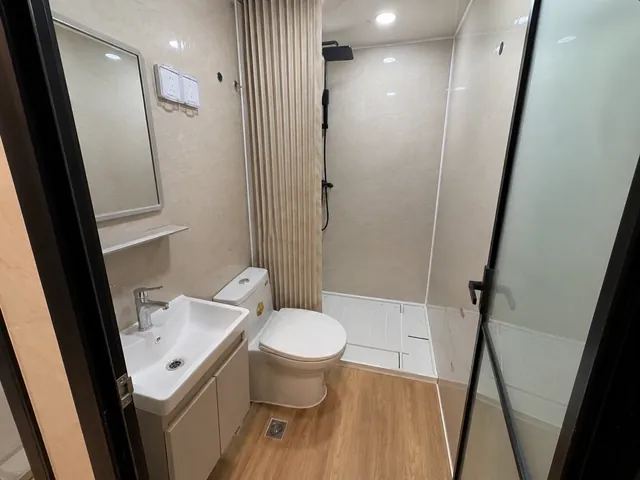

- Kitchen and bathroom illustrated in the dossier.
Plan suppliedTerrace included
Catalogue reference, pages 7Explore the interior.

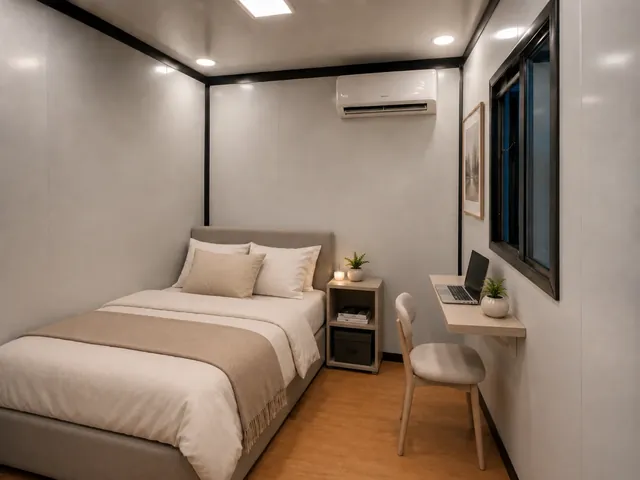

Photographs and views supplied in the model’s dossier. Furniture and equipment follow the chosen configuration.
Our standard features.
Everyday details, shown in pictures. The model parameters remain the reference for materials and the supplied version.

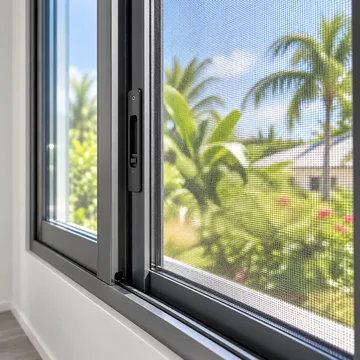

Windows and flyscreens

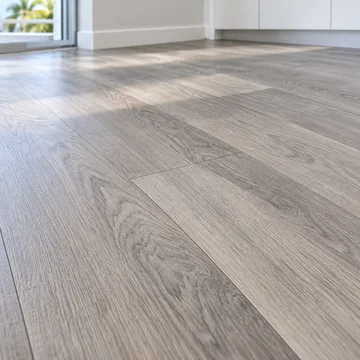

Wood-effect interior floor
Worktop

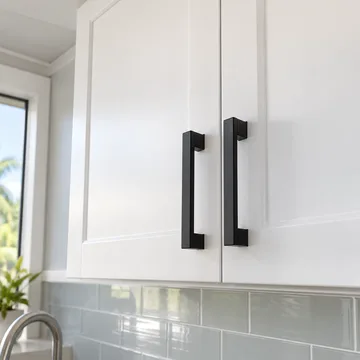

Wall cabinets
Base cabinets
Sink and mixer
Glazed sliding door
Electrical panel
Cornice and skirting

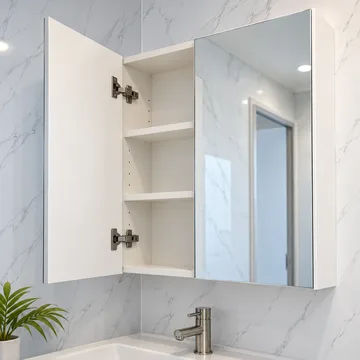

Mirror storage
Bathroom vanity
Electrical sockets
Waste connections
Bedroom door
Bathroom walls
Standard toilet
Detail images illustrate the functions. Colours, furniture and accessories follow the model dossier and your requests.
The area, clearly.
The house body and terrace are shown separately. Areas are calculated from visible dimensions; exterior footprint includes the walls.
2 × (2.050 × 2.510) + (2.200 × 2.950) m
Stepped exterior footprint calculated from the retained compact plan. The 6.300 × 2.950 m rectangle includes empty corners. No dimensioned terrace plan supplied.
The model in detail.
Plan and openings
- Plan
- 6,300 × 2,950 mm
- Exterior wing depth
- 2,510 mm
- Bathroom
- 1,240 × 1,500 mm
- Windows / doors
- 4 W1 + 1 W2; double entrance S2, bedroom door D1 and bathroom door D2.
- Plan chain
- 2,050 + 2,200 + 2,050 mm
Your space, in plan.
Each document keeps its own dimensions. Presentation plans, technical plans, 3D arrangements and elevations are identified separately.

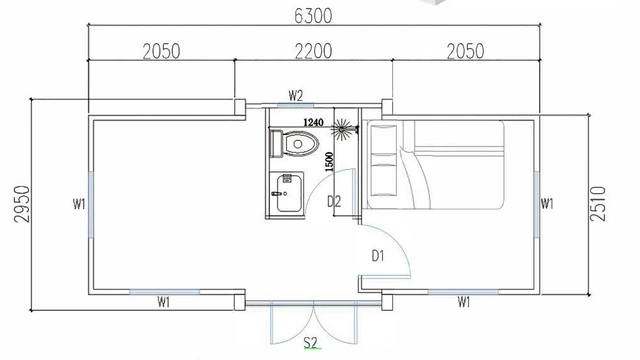

Compact model plan
A configuration
to validate together.
Specify height, opening dimensions, roof, terrace, furniture and appliances for the selected configuration.
Terrace and A-shaped gable roof included in the offered models. Presentation views and dossier photographs remain references. Furniture, equipment and construction details follow the model dossier and your project.
A starting point, your possibilities
Your home follows
your project.
These models reflect the most common requests. We can work with you on materials, layouts, bathrooms, kitchens and room divisions.
Connected modules, extra space and an upper extension: describe your idea. We’ll define the plan and construction solution for your site and use.
Discuss my idea
