The plan does not establish a complete verified net living area.

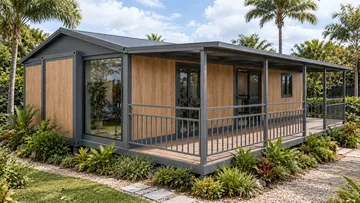

Upper-range 40 ft exterior
40 ft / Model 2
40 ft. The upper range.
Three bedrooms, two sanitary areas and two terrace entrances. L-shaped kitchen and an en-suite bathroom.
- Three bedrooms, guest toilet and en-suite bathroom.
- L-shaped kitchen and two terrace-side entrances.
Plan suppliedTerrace included
Catalogue reference, pages 13, 14, 15Explore the interior.

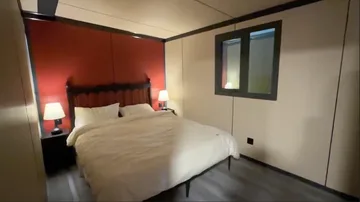

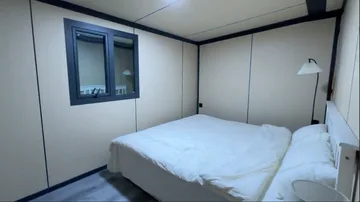

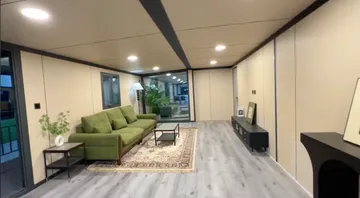

Photographs and views supplied in the model’s dossier. Furniture and equipment follow the chosen configuration.
Our standard features.
Everyday details, shown in pictures. The model parameters remain the reference for materials and the supplied version.
Windows and flyscreens

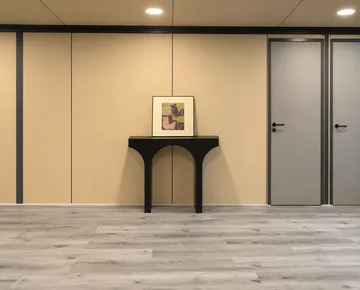

Wood-effect interior floor

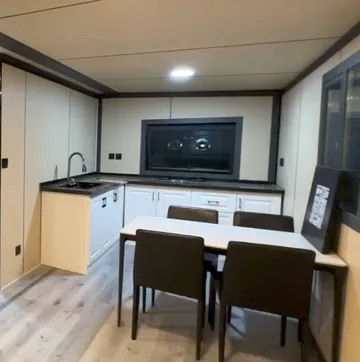

Worktop
Wall cabinets
Base cabinets
Sink and mixer
Glazed sliding door
Electrical panel
Cornice and skirting
Mirror storage

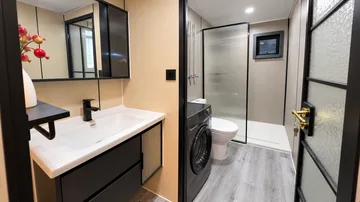

Bathroom vanity
Electrical sockets
Waste connections
Bedroom door
Bathroom walls
Standard toilet
Detail images illustrate the functions. Colours, furniture and accessories follow the model dossier and your requests.
The area, clearly.
The house body and terrace are shown separately. Areas are calculated from visible dimensions; exterior footprint includes the walls.
11.800 × 6.440 m
11.800 × 2.000 m
Presentation view. The 6.300 m technical plan gives 74.34 m²; the 6.320 m reference gives 74.576 m². Interior dimension chains do not reconcile with the outline.
The model in detail.
Separate dimension references
- Body length
- 11,800 mm
- Technical plan width
- 6,300 mm
- Gable width
- 6,320 mm
- Illustrated plan width
- 6,440 mm
- Body height
- 2,480 mm
- Roof
- Length 12,350 mm; raised roof 1,000 mm.
- Terrace
- Illustration: 2,000 mm. Gables: 1,500 + 1,500 mm chain.
- Terrace height
- 2,184 mm
Access and elevations
- Windows across four elevations
- 8: 1 terrace side, 3 opposite side, 2 per gable.
- Access in the illustration
- 2 double doors, each 1,500 mm.
- Preserved roof dimensions
- Roof slopes 6,427 / 3,483 mm; chain 210 + 11,380 + 210 mm.
Your space, in plan.
Each document keeps its own dimensions. Presentation plans, technical plans, 3D arrangements and elevations are identified separately.

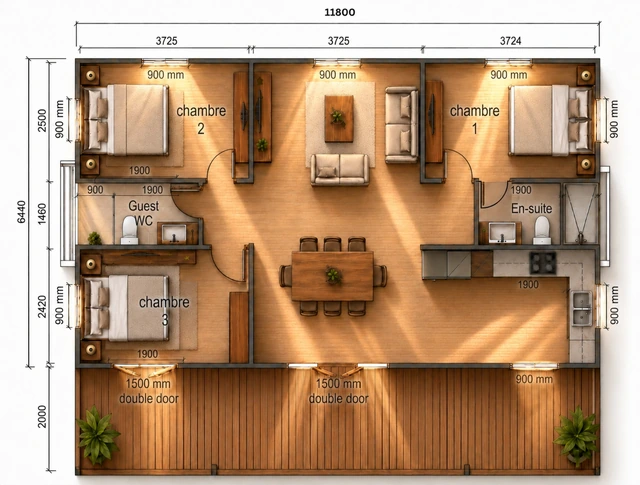

Presentation plan: 11,800 × 6,440 mm

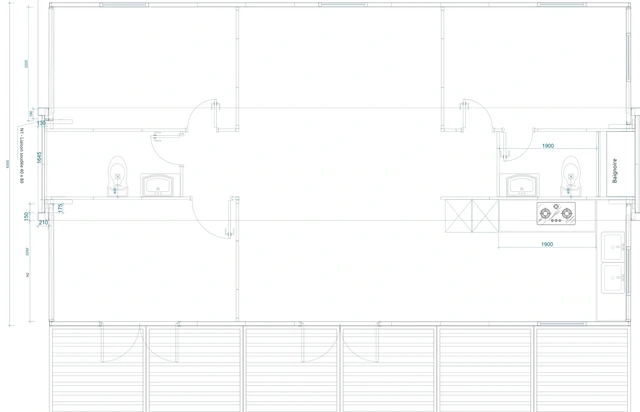

Manufacturer technical plan: 11,800 × 6,300 mm

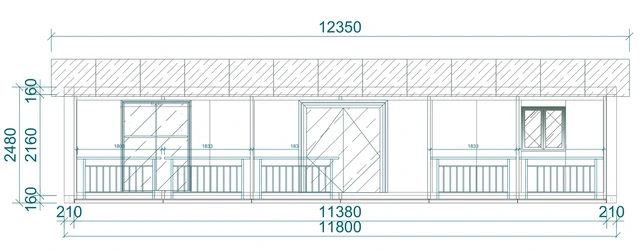

Terrace elevation

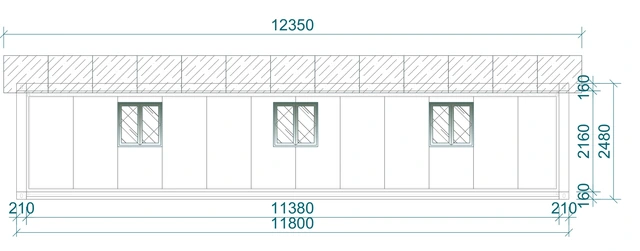

Opposite elevation

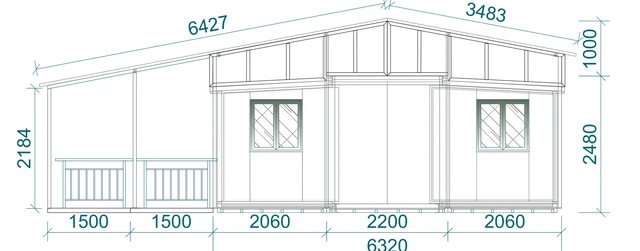

Front gable elevation

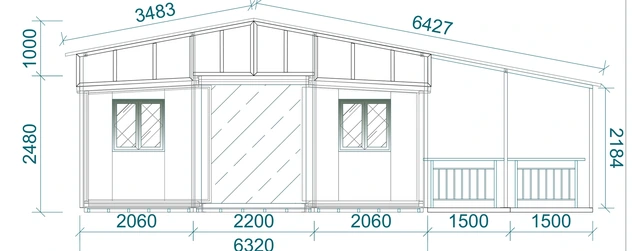

Rear gable elevation
3D arrangement supplied in the 40 ft Model 2 dossier
A configuration
to validate together.
The 6,300, 6,320 and 6,440 mm widths come from separate documents. The final plan must fix the chosen width and terrace.
The centre of the rear gable remains to be clarified. The presentation view does not replace the selected manufacturer plan.
Terrace and A-shaped gable roof included in the offered models. Presentation views and dossier photographs remain references. Furniture, equipment and construction details follow the model dossier and your project.
A starting point, your possibilities
Your home follows
your project.
These models reflect the most common requests. We can work with you on materials, layouts, bathrooms, kitchens and room divisions.
Connected modules, extra space and an upper extension: describe your idea. We’ll define the plan and construction solution for your site and use.
Discuss my idea
